High-precision 8-channel slave delay generator featuring 1 ps resolution, <100 ps RMS jitter, and a wide 1-second delay range.
Versatile timing solution with electrical or optical outputs, ideal for synchronizing complex experiments via Ethernet or web interface.
| Specification | Detail |
|---|---|
| Channels | 8 independent delay channels |
| Timing Resolution | 1 ps resolution |
| Range | Up to 1 second |
| Jitter | < 100 ps rms, < 15 ps rms typ. (Timing system mode) or < 1.5 ns (External trigger) |
| Output Amplitude | 10 V into 50 Ω (Electrical) or 1 mW (Optical option) |
| Rise Time | < 1 ns for both electrical and optical outputs |
| Pulse Width | Programmable, 100 ns to 1 ms +/- 50 ns, 6.25 ns steps |
| Trigger Modes | Internal, External, or Optical Timing System |
| Trigger Rate | Up to 100 kHz repetition rate |
| Control Interfaces | Front panel, Ethernet, and Internal Web server |
| Form Factor | Compact 1U, 19-inch rackmount packaging |

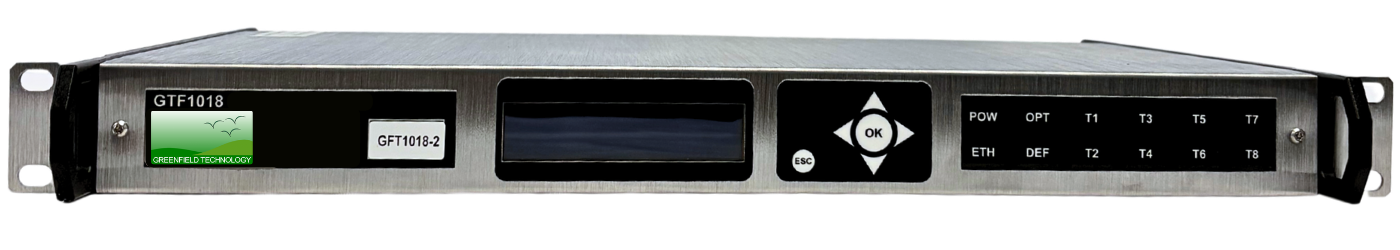

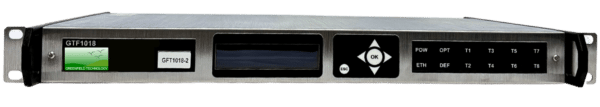

The GFT1018 8-Channel Slave Delay Generator is engineered for large-scale timing systems that require high-density channel counts and ultra-precise synchronization. Operating as a slave unit within a master timing network, it receives an optical data stream to deliver eight independent pulses with 1 ps resolution and a expansive 1-second delay range. This makes it an ideal solution for synchronizing multiple diagnostic instruments across expansive research facilities.
Reliability is at the core of the GFT1018, featuring a channel-to-channel jitter of less than 100 ps RMS and excellent long-term stability for multi-day experiments. Each BNC output can deliver up to 10 V into 50 Ω with a rapid rise time of less than 1 ns. For versatile integration, the unit also offers an optional SC/PC optical output, allowing for seamless communication in fiber-based architectures.
The generator provides flexible triggering through internal timing, external electrical signals, or the dedicated optical timing system input. With its 1U 19-inch rack-mount enclosure, the GFT1018 is designed to maximize space while providing robust connectivity via Ethernet and a built-in web server for remote management.
Key hardware highlights include 1 ps delay resolution, 10 V pulse amplitudes, professional SC/APC optical synchronization inputs, and less than 1 ns rise times. These specs ensure that engineers and researchers have the high-speed, high-voltage, and high-precision timing necessary for the most demanding applications.
