High-performance 1:32 optical splitter with <1ps RMS jitter and low insertion loss, designed for precise synchronization of multiple delay generators.
Ideal for picosecond timing systems, optical networks, and test equipment requiring reliable signal distribution with minimal signal degradation.
- Channel Configuration: 1 input to 32 outputs (24 outputs optional)
- Operating Wavelength: 1300-1550 nm single-mode
- Signal Loss: <17 dB insertion loss, <2 dB uniformity loss
- Timing Performance: <1 ps RMS jitter input to output
- Connectors: SC with shutter (PC/APC options)
- Form Factor: 19" 1U rack mount, 300mm depth
- Power: Passive device (no power required)
The GFT4032 is a 1:32 passive optical splitter that enables precise synchronization of multiple delay generators in picosecond timing systems. Engineered for reliability with metal couplers, it delivers exceptional splitting uniformity with channel-to-channel loss variation under 2 dB and remarkably low input-to-output jitter of less than 1 ps RMS.
Operating across the 1300-1550 nm wavelength range, this passive splitter maintains insertion loss below 17 dB while offering outstanding polarization-dependent loss characteristics of less than 0.3 dB. The device features single-mode fiber compatibility and SC connectors with shutters for secure optical connections.

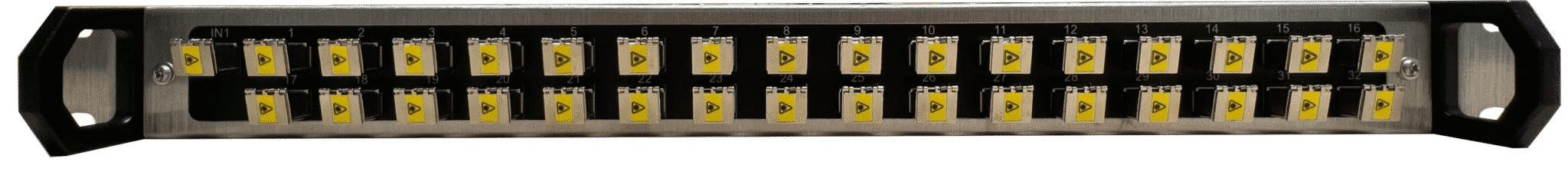

Housed in a standard 19-inch 1U rack-mountable enclosure, the GFT4032 provides flexible configuration options including 24-channel variants, and choice of PC or APC connectors. For applications requiring redundancy, a dual-input option is available to enhance system reliability.
Typical application is to split the optical data stream provided by the Master Oscillator in Picosecond Timing System.
