High-performance 8-channel digital delay generator (12 or 16 Ch in option) featuring 1 ps resolution, <10 ps rms jitter, and adjustable 10 V outputs for precision synchronization.
Ideal for laser timing, ATE, and high-speed camera gating, with flexible remote control via Ethernet.
- Channels: 8 independent delay channels (up to 12 or 16 in option)
- Timing Resolution: 1 ps resolution
- Jitter: <10 ps RMS channel-to-channel (internal triggered)
- Output Amplitude: 3 V to 10 V in 10 mV steps (options for 3.3 V, 5 V, 50 V, or Optical)
- Rise/Fall Time: < 1.5 ns (down to 1 ns with 3.3 V option)
- Pulse Width: 50 ns to 10 s (adjustable per channel)
- Trigger Sources: External, internal (two synchronized timers 1 Hz to 1 MHz), or remote command
- Communication: Ethernet, Web Page GUI, and Front Panel & keys
- Time Base: 160 MHz internal frequency, ±25 ppm stability (adjustable in factory)
- Form Factor: Compact 1U, 19” rack-mount

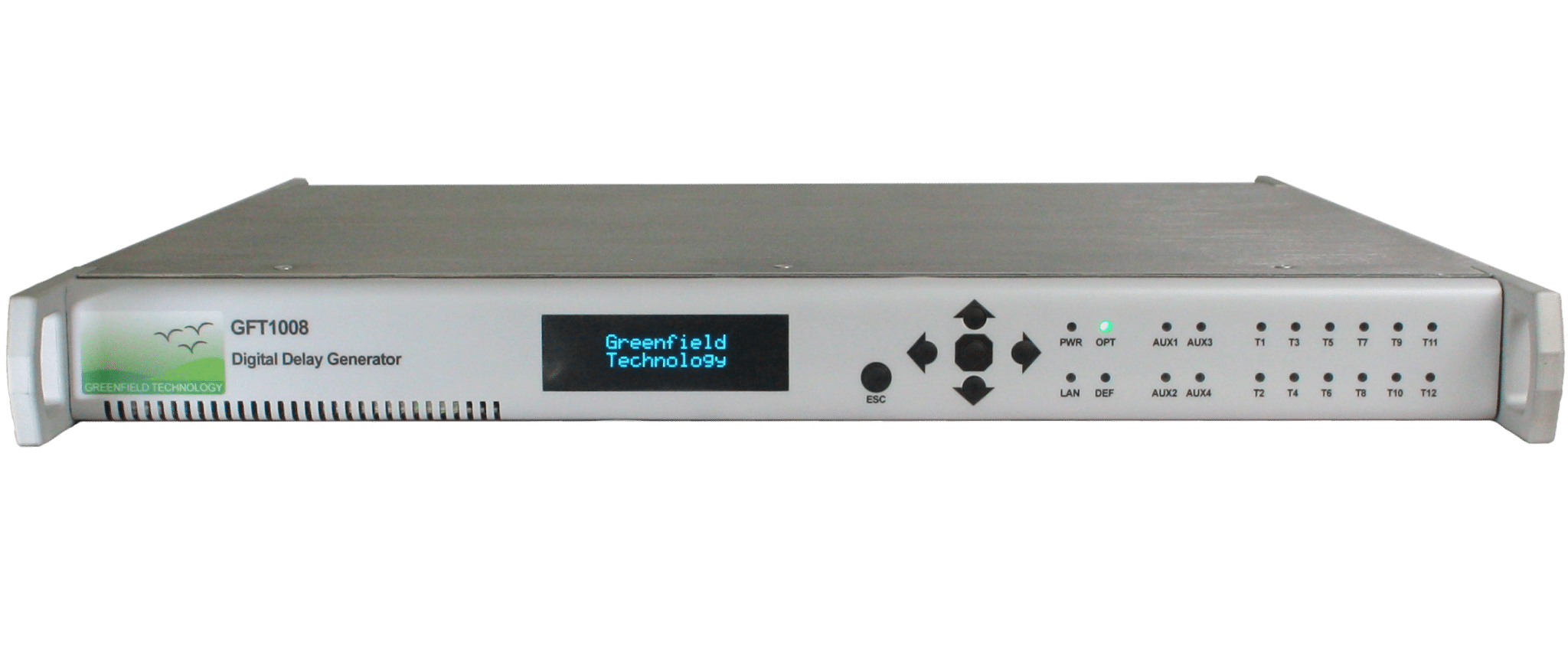

The GFT1008 provides high-precision timing control in a versatile 1U rackmount chassis, offering eight independent delay channels that are expandable up to 16. With an impressive 1 ps time resolution and channel-to-channel jitter of less than 10 ps RMS, it is an ideal solution for researchers requiring extreme synchronization for laser systems, automated test equipment, and high-speed imaging.
Each channel offers independent control over delay, pulse width, amplitude, and polarity, with outputs capable of delivering up to 10 V and 1 ns rise times.See below the specifications of all drivers:
| Driver | 10V | 3.3V | 05V | 50V | WxxxYY |
| Amplitude | 3 to 10 V @ 50Ω | 3.3 V @ 50Ω | 1.5 to 5 V @ 50Ω 3 to 10 V @ 1 MΩ | 15 to 50 V @ 50Ω | > 250 µW |
| Width | 50 ns to 10 ms | 50 ns to 10 s | 50 ns to 10 s | 50 ns to 5 µs | 0.1 to 10 µs |
| Rise & Fall time | 1.5 ns @ 10 V | 0.7 ns | 1 ns @ 5V | 3/15 ns | 1/2 ns |
| Polarity | + | +/- | +/- | + | + |
| RMS Jitter | < 15 ps | < 6 ps | < 15 ps | < 15 ps | < 15 ps |
| Duty cycle | 0 to 25 % | 0 to ∞ | 0 to ∞ | 0 to 25 % | 0 to 25 % |
The instrument is designed to be either a standalone local controller or a fully integrated component within a larger timing system. It features dual synchronized internal timers and the ability to operate remotely via optical fiber.
Engineers can manage parameters locally via the front panel or remotely through a built-in web server and Ethernet interface. For specialized applications, the GFT1008 supports a wide range of hardware options, including high-voltage 50 V outputs, optical interfaces, and custom time bases up to 100 MHz. A variety of driver configurations are available; please refer to the datasheet for detailed voltage, jitter, and polarity specifications.
Click the “Get Quote” button above to quickly get a quote or to customize this product to your project’s requirements with our engineering team.
Whether you’re developing complex laser systems, high-speed data acquisition setups, or any timing-sensitive applications, we provide the performance and engineering support you need to succeed.
