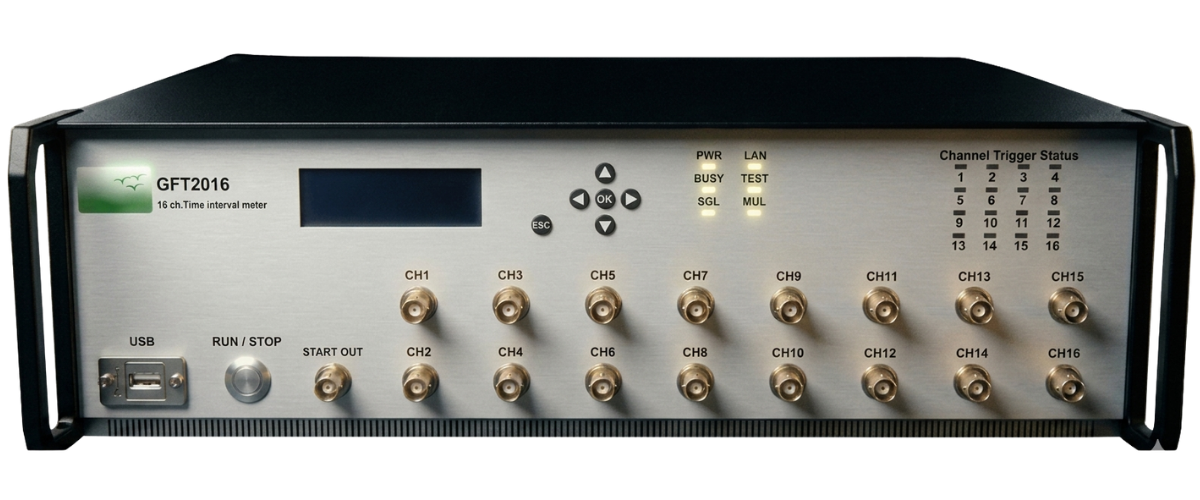

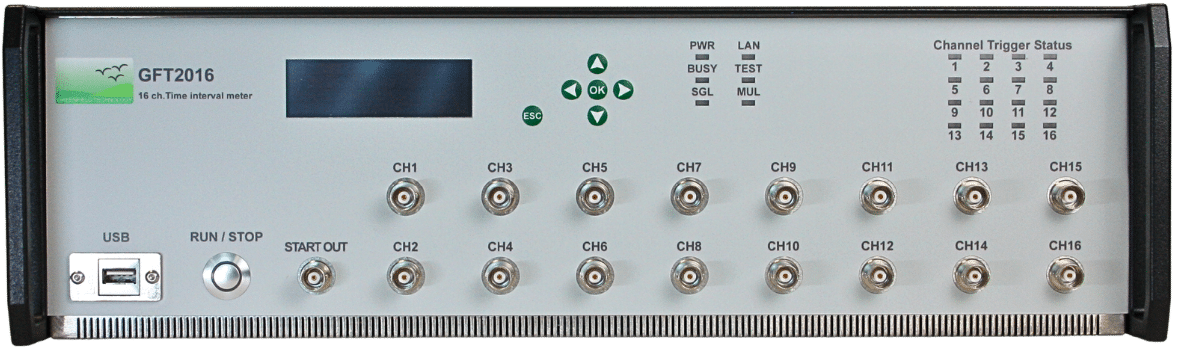

The GFT2016 is a very precise Time Interval Meter. It has 16 channels: Channel 0 is used as the “Start” time reference for channels 1-15 being “Stops” events of the Time Interval measurement.
Each channel can measure the time of the rising edge of one electrical input, to 10 picoseconds resolution with > 10 seconds range. Time Interval samples can be automatically processed to provide Mean, Max, Min and RMS/Jitter.
The instrument uses an internal 10 MHz oscillator or an external very stable 10 MHz source.
The Instrument offers 4 GPIO (4 digital bi-directional signals) under software control for communication to external equipment. The GFT2016 is a 19″, 2U rack instrument with Ethernet interface.
The instrument as a built in Web server that provide an easy remote control via a standard Web Browser. “Control panel Web page” from embedded web server provide an easy method to:
