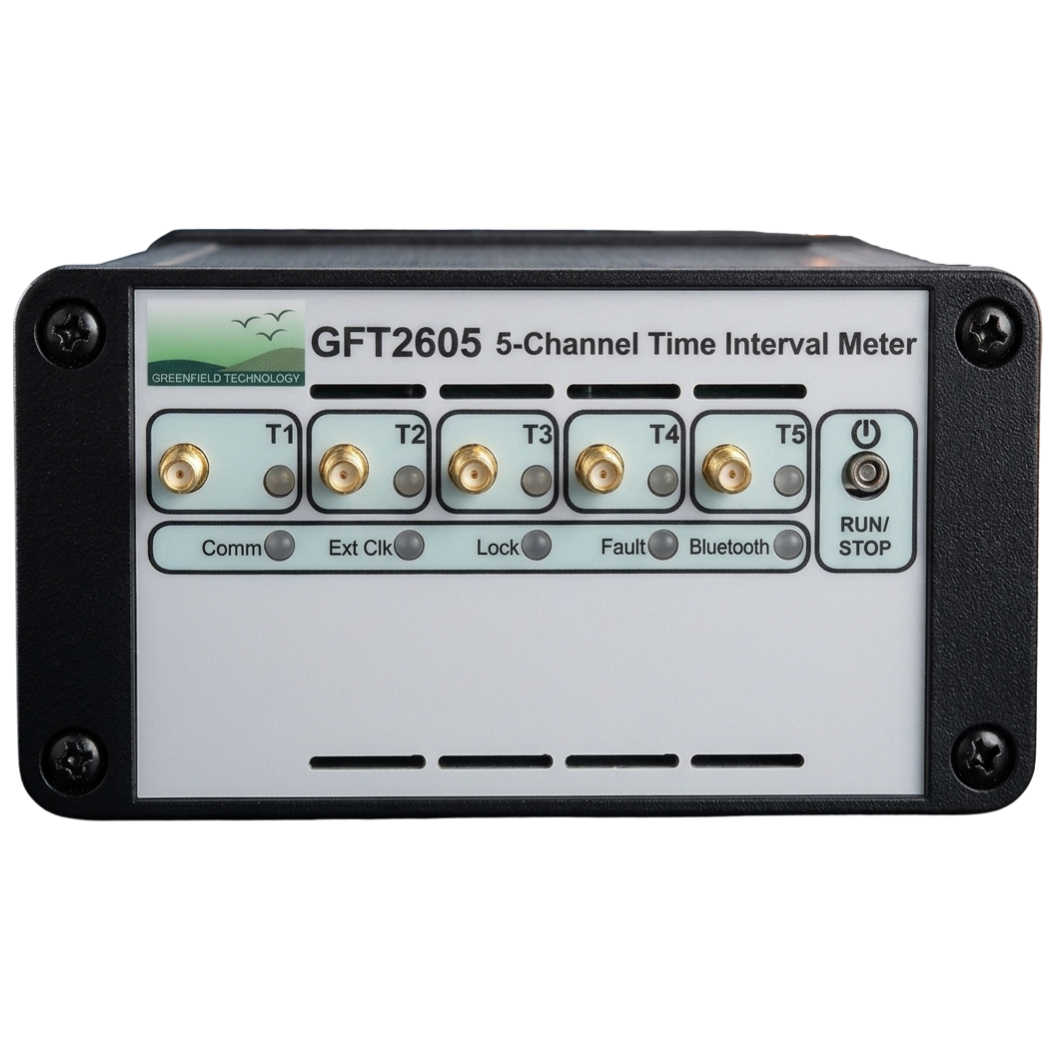

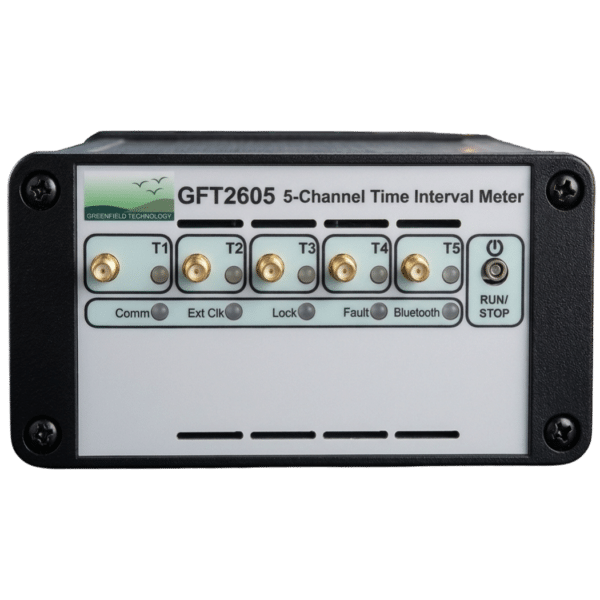

5-Channel Time Interval Meter

SKU: GFT2605 Categories: Box, Time & Frequency Meter

High-precision 5-channel time interval meter featuring 20 ps single-shot resolution, 50 ps RMS jitter, and extended >100 second range.

Ideal for time-of-flight mass spectrometry, fluorescent decay analysis, and lab testing with easy web-based control and Ethernet/USB connectivity.

Features:

5-channel Time-Interval Meter : 1x Start and 4x Stops
- < 20 picosecond resolution single shot
- 50 picosecond RMS jitter typ.
- > 100 second range
- 10 MHz sample rate per channel
Common GATE input
Input for external 10 MHz to 240 MHz reference
4 GPIO signals for communication to external equipment
Easy & quick control via “Control panel web page” (only 10 seconds to connect your PC)
100 Mbit/s Ethernet and USB interface for remote control
Ultra-Compact package with optional mounting flanges

Description:

The GFT2605 is a very precise Time Interval Meter.
It has five channels: Channel 1 is used as the “Start” time reference for channels 2-5 being “Stops” events of the Time Interval measurement.
Each channel can measure the time of the rising/falling edge of one electrical input, to 20 picoseconds resolution with > 100 second’s range. Time Interval samples can be automatically processed to provide Mean, Max, Min and RMS/Jitter.
The instrument uses an internal 10 MHz oscillator or an external very stable 10 MHz to 240 MHz source.
The Instrument offers 4 GPIO (4 digital bi-directional signals) under software control for communication to external equipment.
The GFT2605 is an ultra-compact and low power instrument with Ethernet interface.
The instrument has a built in Web server that provides an easy remote control via a standard Web Browser.

“Control panel Web page” from embedded web server provide an easy method to:
- Configure settings for each channel and Control operation and status of the instrument
- View the measurements (value and graphic form)
- Save the measurements in your computer file
